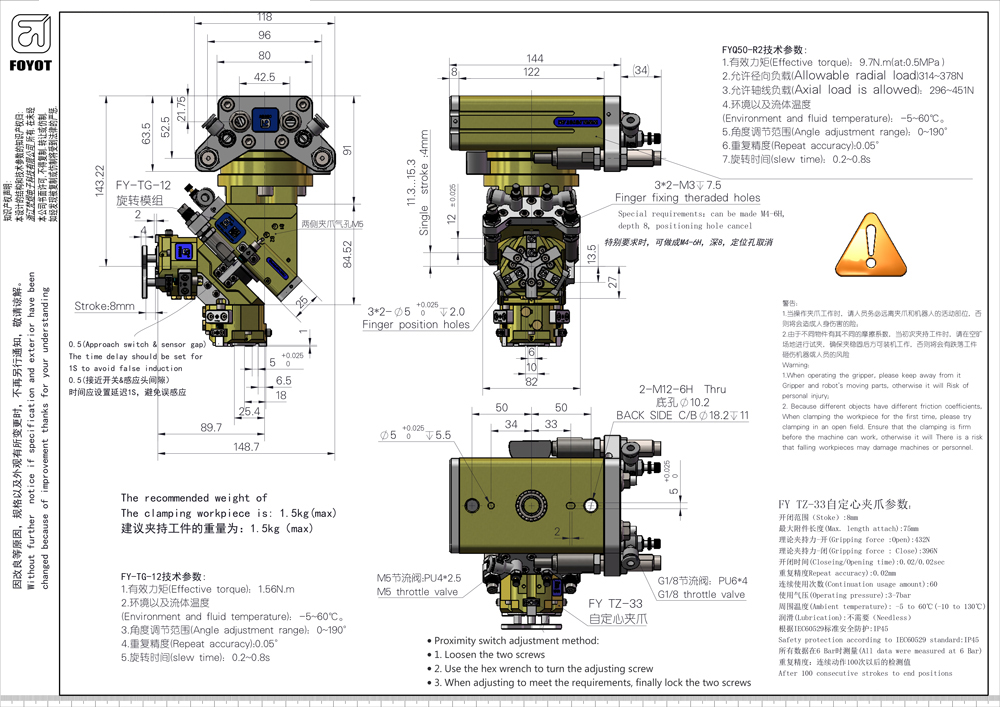

FYTZ-33自定心夾爪參數：

開閉范圍(Stoke):8mm

最大附件長度(Max.length attach):75mm

理論夾持力-開(Gripping force:0pen):432N

理論夾持力-閉(Gripping force:Close):396N

開閉時間(C1 oseing,/0 pening time):0.02/0.02sec

重復精度Repeat accuracy).:0.O2mm

連續使用次數(Continuation usage amount):60

使用氣壓(Operating pressure):3-7bar

周圍溫度(Ambient temperature):-5to60℃(-10to130℃)

潤滑(Lubrication):不需要(Needless)

根據IEC60529標準安全防護：IP45

Safety protection according to IEC60529 standard:IP45

所有數據在6Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以后的檢測值

After 100 consecutive strokes to end positions
